A CNC Cutting Machine works by using computer instructions to control cutting tools, guide tool paths, and process materials into accurate shapes. Instead of relying on manual cutting, the machine follows digital files created through CAD and CAM software, then moves the cutting head across the material according to programmed coordinates. This makes the CNC Cutting Machine useful for repeatable production, complex patterns, and flexible material cutting in industries such as leather goods, apparel, automotive interiors, packaging, furniture, foam processing, and gasket manufacturing. CNC cutting generally follows a workflow from CAD design to CAM programming, machine setup, cutting, inspection, and finishing.
A CNC Cutting Machine is an automated cutting system controlled by computer numerical control. “CNC” means that the machine follows numerical instructions instead of hand-guided cutting. These instructions tell the machine where to move, how fast to move, when to cut, how deep to cut, and which tool to use.
In practical production, a CNC Cutting Machine can cut different materials depending on its structure and tool configuration. Knife cutting machines are often used for flexible non-metallic materials such as fabric, leather, foam, rubber, gasket material, cardboard, and packaging sheets. Laser cutting machines are used when heat-based cutting is suitable. Router, waterjet, plasma, milling, and lathe systems also belong to the wider CNC manufacturing field, but each process has different material compatibility and edge results.
For KJ CNC, the main product direction is flexible material cutting. Its product categories include leather cutting machines, fabric cutting machines, sponge cutting machines, apparel cutting machines, CNC oscillating knife cutting machines, cutting machine accessories, and laser cutting machines. Its CNC cutting equipment is positioned for leather, fabric, foam, gasket, packaging, and other soft material processing.
A CNC Cutting Machine works through six main steps:
1. Create a digital design
2. The part shape, pattern, or cutting layout is created in CAD software.Convert the design into machine instructions
3. CAM software converts the design into tool paths and machine code, commonly known as G-code.Prepare the material
4. The operator loads the material onto the cutting table and fixes it with vacuum adsorption, clamps, or other holding methods.Set the cutting tool and parameters
5. The operator selects the tool, cutting depth, speed, pressure, blade type, laser power, or other processing settings.Run the cutting program
The CNC Cutting Machine reads the program and moves the cutting head along the programmed path.
6. Inspect and finish the part
Finished parts are checked for size, edge quality, shape accuracy, and production consistency.This workflow is important because the machine does not “decide” the shape by itself. The CNC Cutting Machine follows the file, tool path, material settings, and operator setup. Good results depend on the combination of digital design, machine stability, tool selection, material control, and process experience.
The working process of a CNC Cutting Machine starts before the material reaches the cutting table. The real foundation is the digital workflow.
CAD stands for computer-aided design. In this stage, engineers, designers, or pattern makers create the part drawing. The file may include outer contours, inner holes, marks, notches, folds, punching positions, or layout information.
For example, an automotive floor mat manufacturer may create a shape based on vehicle interior dimensions. A leather handbag factory may create cutting patterns for panels, straps, and reinforcement pieces. A packaging producer may design cardboard shapes with cutting and creasing lines.
The quality of the CAD file directly affects the final cut. If the file has broken lines, overlapping shapes, wrong scaling, or incomplete curves, the CNC Cutting Machine may not process the material correctly.
CAM stands for computer-aided manufacturing. CAM software converts the CAD design into a cutting path. This stage decides how the machine will move, where it will start, where it will stop, and how it will process different shapes.
For a CNC Cutting Machine, CAM programming may include:
● Cutting order
● Tool path direction
● Nesting layout
● Cutting speed
● Tool pressure
● Blade depth
● Corner processing
● Marking or punching sequence
● Material utilization strategy
CAM software is especially important when multiple patterns must be arranged on one sheet or roll. Good nesting can reduce waste and improve material utilization.
After CAM processing, the machine receives numerical instructions. In many CNC systems, this is called G-code. These instructions tell the CNC Cutting Machine how to move along X, Y, and sometimes Z axes.
For simple 2D cutting, the machine mainly controls horizontal movement and tool lifting. For more advanced cutting, the system may also control tool angle, oscillation frequency, bevel cutting, punching, marking, feeding, and camera recognition.
Before production starts, the operator needs to prepare the CNC Cutting Machine. This includes loading the material, selecting the tool, confirming the cutting area, checking vacuum suction, setting the origin point, and running a test cut.
Even though CNC cutting is automated, human setup still matters. CNC operators are needed to align materials, adjust tools, test machine performance, monitor feed and speed, and inspect finished parts.
Once the program starts, the CNC Cutting Machine moves according to the programmed path. A knife cutting machine may use a vibrating knife, round knife, pneumatic knife, drag knife, V-cut tool, punch tool, or marking pen. A laser cutting machine uses a laser beam. A router uses a rotating cutting tool.
For flexible materials, oscillating knife cutting is often preferred because it is a cold cutting process. It does not burn the material edge and can be suitable for many non-metallic materials where heat damage should be avoided.
After cutting, the operator checks whether the part matches the required size, shape, and edge finish. If there is deviation, the operator may adjust tool depth, speed, pressure, blade type, material holding, or cutting sequence.
In batch production, stable settings allow the CNC Cutting Machine to repeat the same cutting process with consistent results.

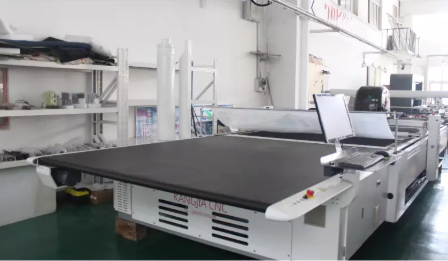

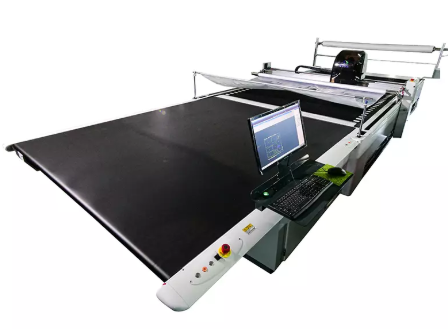

A CNC Cutting Machine is not just a cutting head. It is a complete system that combines mechanical structure, motion control, software, material holding, and safety protection.
Component | Function | Why It Matters |
Machine frame | Supports the whole machine structure | A stable frame reduces vibration and helps maintain cutting accuracy |
Cutting table | Holds the material during processing | Flatness affects edge quality and dimensional accuracy |
Motion system | Moves the cutting head along the X and Y axes | Determines speed, smoothness, and repeatability |
Cutting head | Holds the knife, laser, router, or tool | Determines what materials and shapes the machine can process |
Control system | Reads the program and controls movement | Connects software instructions with machine action |
Vacuum adsorption system | Fixes flexible materials on the table | Prevents material shifting during cutting |
Tool modules | Support different cutting or marking functions | Allow one machine to handle more processes |
Safety system | Protects operators and equipment | Reduces risks during high-speed operation |
Software | Handles design, nesting, tool path, and production settings | Improves efficiency, material use, and workflow control |
KJ CNC highlights features such as integrated welding frame construction, infrared induction and mechanical collision avoidance, cold cutting, higher cutting accuracy, automatic cutting software, and interchangeable cutter heads for cutting, punching, and indentation processes.
Many users search for CNC Cutting Machine and CNC Machining together, but they are not exactly the same. CNC machining is a broader manufacturing concept. It includes milling, turning, drilling, routing, grinding, cutting, and other computer-controlled processes. A CNC Cutting Machine is usually focused on cutting material into shapes, especially sheet, roll, or flat materials.
Item | CNC Cutting Machine | CNC Machining |
Main purpose | Cut materials into flat or shaped parts | Remove material to create parts, surfaces, holes, slots, and 3D geometry |
Common materials | Fabric, leather, foam, rubber, cardboard, gasket, plastic, wood, metal sheets depending on tool type | Metal, plastic, wood, composites, and engineered materials |
Common tools | Knife, laser, router, waterjet, plasma | Milling cutter, drill, lathe tool, grinder, router, EDM wire |
Typical output | Patterns, panels, gaskets, packaging parts, textile pieces, soft material components | Mechanical parts, molds, shafts, housings, precision components |
Best for | Fast shape cutting and repeatable material layouts | Precision part manufacturing and complex 3D features |
A CNC Cutting Machine can be part of CNC Machining, but in flexible material factories, the term usually refers to digital knife cutting, oscillating knife cutting, laser cutting, or flatbed cutting systems.
Different cutting methods are used for different materials. Choosing the right CNC Cutting Machine depends on the material type, thickness, edge requirement, speed target, and production volume.
Cutting Type | How It Works | Suitable Materials | Main Advantage |
Oscillating knife cutting | A blade vibrates at high frequency to cut flexible materials | Leather, fabric, foam, rubber, gasket, cardboard, packaging material | Cold cutting, clean edge, flexible tool options |
Round knife cutting | A circular blade rotates to cut soft materials | Fabric, textile, multi-layer materials, some gasket materials | Smooth cutting for certain flexible sheets |
Laser cutting | A focused laser beam melts, burns, or vaporizes material | Fabric, leather, acrylic, wood, paper, some plastics and metals depending on laser type | High speed and detailed patterns |
CNC router cutting | A rotating tool removes material | Wood, acrylic, plastic, composites, foam board | Suitable for thicker rigid sheets |
Waterjet cutting | High-pressure water, sometimes with abrasive, cuts material | Rubber, composites, metal, stone, glass, some heat-sensitive materials | No heat-affected edge |
Plasma cutting | A plasma arc cuts conductive metals | Steel, stainless steel, aluminum | Fast metal sheet cutting |
For KJ CNC’s target applications, oscillating knife cutting is especially relevant because the company’s equipment is designed around leather, fabric, foam, gasket, packaging, and other flexible materials.

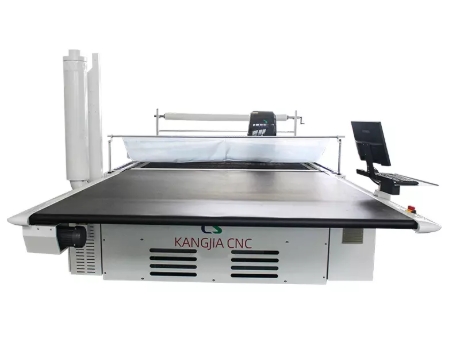

An oscillating knife CNC Cutting Machine uses a blade that moves up and down at high frequency. As the machine head moves along the programmed path, the blade cuts through the material without using heat.
This working method is suitable for many flexible materials because it reduces the risk of burnt edges, smoke, and odor. KJ CNC describes its CNC cutting process as smokeless and odorless for suitable materials, and its oscillating knife machines are built for leather, fabric, foam, gasket, packaging, and other flexible materials.
The machine may also use different tools in one workflow. For example:
● Vibrating knife for flexible sheets
● Round knife for certain textiles
● Pneumatic knife for thicker or denser materials
● Bevel cutter for angled edges
● V punch or round punch for holes
● Marking pen for pattern marks
● Creasing tool for packaging folds
This makes an oscillating knife CNC Cutting Machine useful for factories that process many material types or frequently change product designs.
Accuracy is one of the main reasons manufacturers invest in a CNC Cutting Machine. However, accuracy does not depend only on the control system. It depends on the full production environment.
A rigid frame helps reduce vibration and movement deviation. If the frame is weak, the cutting head may shake during high-speed operation, especially when cutting complex curves or corners.
A flat table helps maintain consistent cutting depth. KJ CNC’s oscillating knife machine page describes tabletop flatness detection and real-time software correction for cutting quality.
Flexible materials can stretch, curl, wrinkle, or shift. Vacuum adsorption helps keep the material stable during cutting. This is especially important for fabric, leather, foam, and gasket sheets.
The wrong blade can cause rough edges, drag marks, incomplete cuts, or material deformation. A CNC Cutting Machine should be matched with the right tool for the material thickness, density, and surface behavior.
Higher speed can improve output, but excessive speed may reduce edge quality. The best speed depends on material type, tool sharpness, cutting shape, and machine rigidity.
Even with automatic cutting, operators must choose the right settings, test the cut, and monitor the result. Good setup reduces waste and improves repeatability.
For factories that still rely on manual cutting, the decision to use a CNC Cutting Machine usually comes down to productivity, consistency, labor cost, and material waste.
Factor | Manual Cutting | CNC Cutting Machine |
Repeatability | Depends heavily on worker skill | Follows the same digital path repeatedly |
Complex shapes | Slower and harder to keep consistent | Suitable for curves, holes, notches, and detailed patterns |
Material usage | More dependent on manual layout | Nesting software can improve layout efficiency |
Labor intensity | Higher physical workload | Operator focuses on setup, monitoring, and inspection |
Production speed | Limited by manual cutting speed | Faster for repeated patterns and batch production |
Quality control | Variation between operators | More stable when files and settings are correct |
Design changes | Require manual template changes | Digital files can be modified and reused |
Best use case | Small repairs, one-off simple cuts | Batch cutting, customized shapes, multi-style production |
This does not mean manual cutting has no value. Manual cutting is still useful for simple adjustments, sample repairs, or very low-volume work. But when a factory needs repeatable shapes, faster output, better material utilization, and more stable quality, a CNC Cutting Machine becomes a stronger long-term solution.
The CNC Cutting Machine is becoming more intelligent, more connected, and more flexible. Manufacturers are no longer looking only at cutting speed. They also care about automation, nesting efficiency, operator safety, maintenance, data tracking, and integration with production systems.
Modern CNC cutting workflows increasingly connect CAD design, CAM programming, nesting, and machine control. This helps reduce manual programming time and makes production changes faster. CNC cutting generally depends on CAD and CAM software to translate digital designs into controlled tool paths.
AI and machine learning are becoming more visible in smart manufacturing. Current CNC trends include smarter automation, deeper AI integration, adaptive toolpaths, predictive maintenance, and data-driven process improvement.
For a CNC Cutting Machine, this trend may appear in automatic nesting, camera recognition, cutting path optimization, production data analysis, and maintenance alerts.
Vision systems help the CNC Cutting Machine identify printed patterns, material edges, marks, or leather defects. KJ CNC lists large CCD intelligent recognition and edge cutting as a technology advantage.
This is useful for printed fabric, leather, packaging samples, and irregular materials where the cutting path must match the real material position.
Factories increasingly want one CNC Cutting Machine to handle more than one process. Tool modules for cutting, punching, marking, and creasing reduce the need for multiple separate machines. This is especially valuable for packaging, leather goods, shoe production, and custom fabric cutting.
Sustainability is also influencing equipment selection. Cold cutting, efficient nesting, and reduced rework can help factories lower unnecessary waste. For flexible materials, knife cutting can avoid smoke and burnt edges when compared with heat-based processes on suitable materials.
Choosing a CNC Cutting Machine should start with the material, not the machine name. A machine that works well for fabric may not be the best choice for thick foam, dense rubber, genuine leather, acrylic, or metal sheet.
Before purchasing a CNC Cutting Machine, manufacturers should confirm:
1. Material type
2. Is the material fabric, leather, foam, rubber, cardboard, plastic, composite, or metal?Material thickness
3. Cutting depth, blade type, tool pressure, and machine power all depend on thickness.Original material size
4. Sheet size or roll width affects the required working area and feeding system.Production volume
5. Sampling, small-batch production, and mass production may require different machine configurations.Cutting edge requirement
6. Some products require clean edges, bevel edges, punched holes, creasing, or marking.Automation level
7. Automatic feeding, CCD recognition, nesting software, and multi-tool systems can improve efficiency.Operator skill and training
A good machine should be supported by clear manuals, training resources, and technical service.KJ CNC’s FAQ also recommends confirming the cutting material, the largest original material size, and material thickness before selecting a suitable cutting machine.
A CNC Cutting Machine can serve many industries, especially when the product requires shaped cutting from sheet or roll materials.
Automotive factories use CNC cutting for floor mats, seat materials, insulation pads, trunk mats, interior panels, and upholstery components. Accuracy and repeatability are important because parts must fit vehicle interior dimensions.
Leather cutting requires careful material utilization because leather can be expensive and may contain natural defects. A CNC Cutting Machine with camera recognition and nesting can help improve layout control for shoes, bags, belts, and furniture leather.
Fabric cutting machines are used for clothing samples, sportswear, upholstery, home textiles, and industrial textiles. Automatic feeding can help continuous production from roll materials.
Packaging producers use CNC cutting for carton samples, corrugated cardboard, foam inserts, display boxes, and short-run customized packaging. Creasing and cutting tools can work together to support prototyping and production.
A CNC Cutting Machine can cut gasket sheets, rubber sheets, sealing materials, and foam seals. Precision cutting helps maintain consistent shapes for mechanical and industrial applications.
Sofa fabric, leather panels, cushion foam, and decorative materials can be cut with digital patterns. This helps furniture manufacturers respond faster to custom orders and style changes.
A CNC Cutting Machine should be maintained regularly to keep cutting quality stable. Operators should check blades, tool holders, vacuum suction, table cleanliness, software settings, rails, belts, lubrication, sensors, and emergency stop systems.
Basic checks include:
● Replace dull blades before edge quality declines
● Keep the cutting table clean and flat
● Confirm vacuum suction before starting production
● Test cutting depth on scrap material
● Check whether the file scale is correct
● Clean dust and material debris from moving parts
● Inspect cables, sensors, and safety devices
● Back up cutting files and machine parameters
● Train operators to stop the machine when abnormal noise or movement appears
KJ CNC states that its standard warranty is 12 months upon delivery and that support can include online technical support, door-to-door service, manuals, and guide videos.
A CNC Cutting Machine works by turning a digital design into a controlled cutting path. The process begins with CAD design, continues through CAM programming and machine setup, and ends with automatic cutting and inspection. Compared with manual cutting, a CNC Cutting Machine gives manufacturers better repeatability, faster production for complex shapes, more efficient material layout, and stronger process control.
For factories working with leather, fabric, foam, gasket, packaging, apparel, automotive interiors, and furniture materials, the right CNC Cutting Machine can become a core production asset. The best choice depends on material type, thickness, working size, tool configuration, automation needs, and after-sales support. As smart manufacturing develops, CNC cutting will continue moving toward better software integration, vision recognition, automatic nesting, cleaner cutting, and more intelligent production control.
Yes, but the machine must use the right tool and settings. Fabric may need a round knife or oscillating knife, while leather often requires stable vacuum adsorption, correct blade depth, and sometimes CCD recognition for better material utilization.
Most CNC cutting workflows start with a CAD file, then use CAM software to create the machine path. The required file type depends on the machine control system, but common production workflows may involve DXF, PLT, AI, or other vector-based formats.
It depends on the material and edge requirement. An oscillating knife machine is often better for flexible materials that should not be burned or heat-affected. A laser cutting machine may be better for fine details or materials where heat cutting produces the desired edge.
Material movement can happen because of weak vacuum suction, curled material, low friction, incorrect cutting force, excessive speed, or poor table flatness. Proper material holding is essential for accurate CNC cutting.
Factories can reduce waste by using nesting software, checking material width accurately, maintaining sharp tools, testing cutting parameters before batch production, and organizing patterns according to material defects, grain direction, or roll layout.
