PDA-DT1625
kangjia

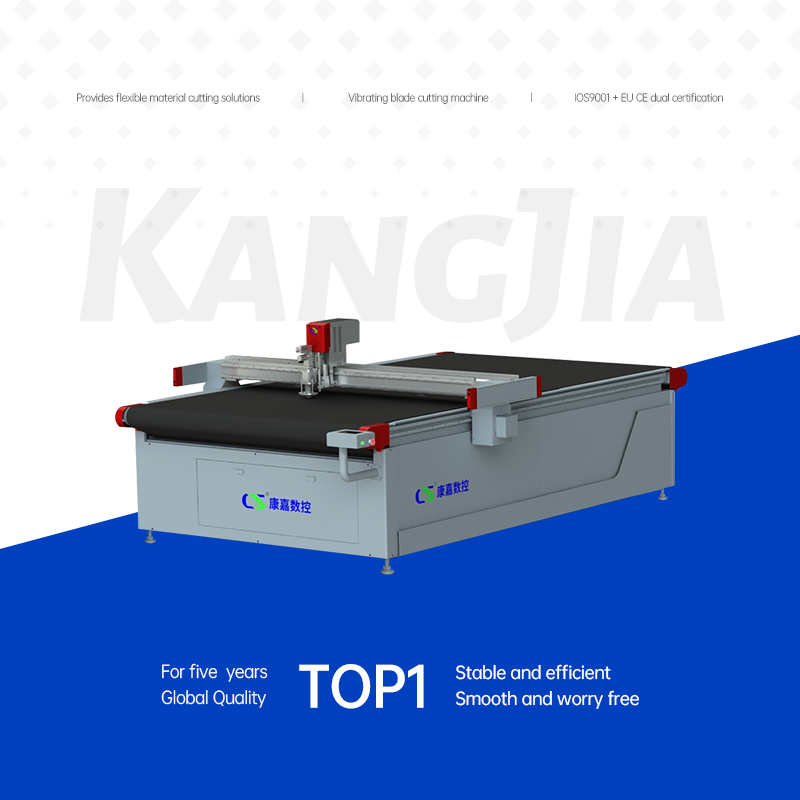

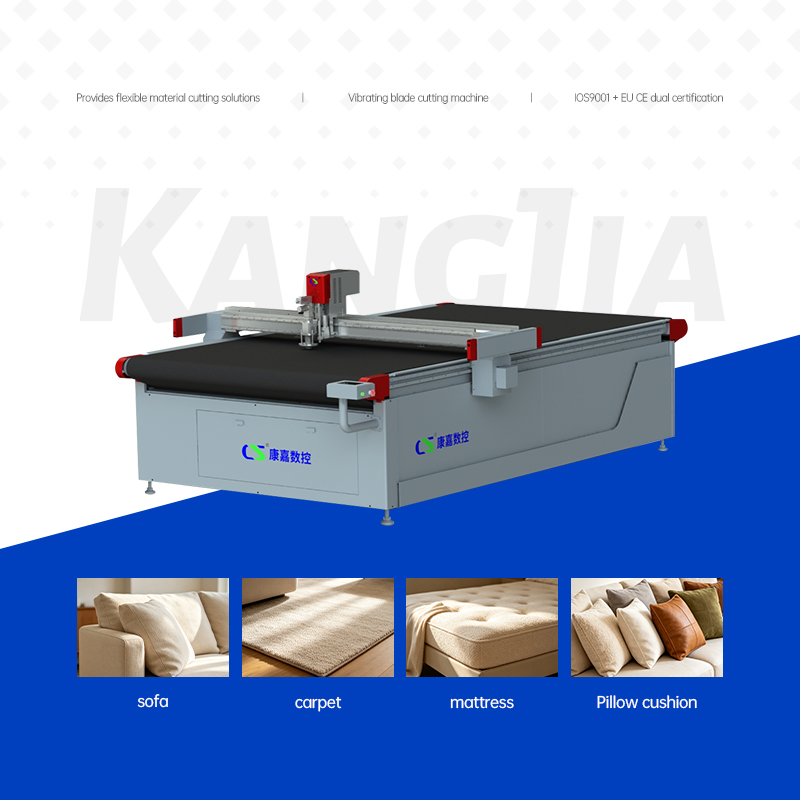

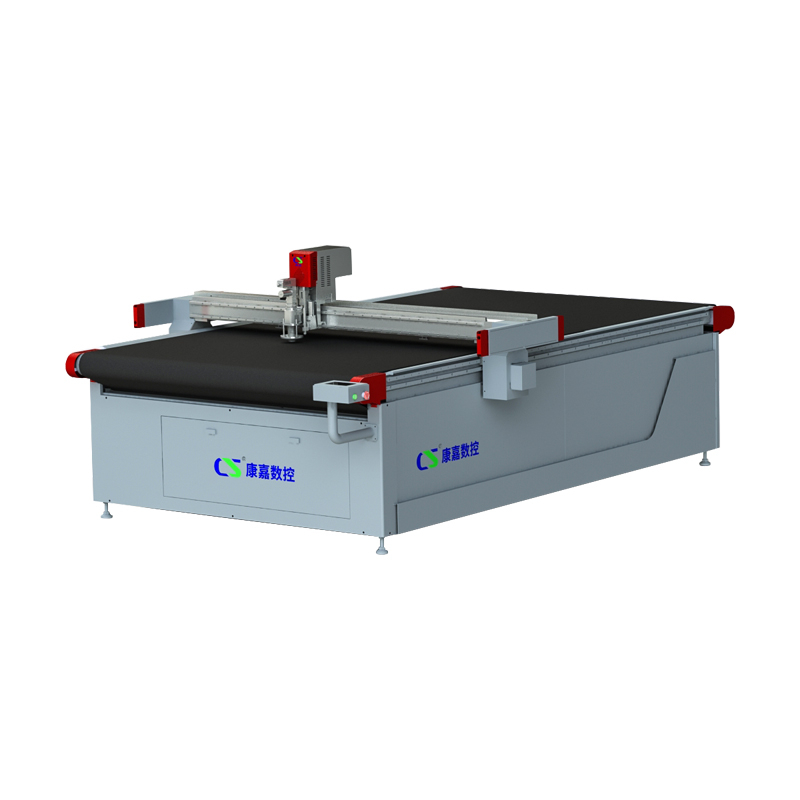

| | Vibrating Knife Cutting Machine for Home Furnishing & UpholsteryThe KANGJIA CNC vibrating knife cutting machine is a digital flatbed cutter purpose-built for the home furnishing industry. It replaces manual scissor cutting and die-cutting with a fully automated, software-driven workflow — delivering clean, repeatable cuts for sofas, carpets, mattresses, cushions and a wide range of flexible materials. Whether you run a small upholstery workshop or a large furniture factory, this machine helps you cut faster, use less material, and reduce labor cost. |
 | Why a Vibrating Knife?Unlike a laser cutter, a vibrating knife cuts through high-frequency up-and-down blade oscillation — no heat, no burnt edges, no odor. It is the safest and cleanest choice for foam, sponge, fabric, leather, carpet and other soft materials commonly used in home furnishing. |
Parameter | Value |
Model | KJPD-ZD-1625 (customizable) |
Effective cutting area | 1600 × 2500 mm (customizable) |
Max. cutting speed | 0-2500 mm/s(material-dependent) |
Max. cutting thickness | ≤ 200 mm (material-dependent) |
Material fixation | Vacuum adsorption table |
Tool options | Round blade, vibrating knife, V-knife, round punch |
Data formats | AI, PLT, DXF, CDR, CAD |
Interface | Ethernet port |
Voltage | 380V ±10% / 220V ±10% |
Rated power | 11 kW (customizable) |

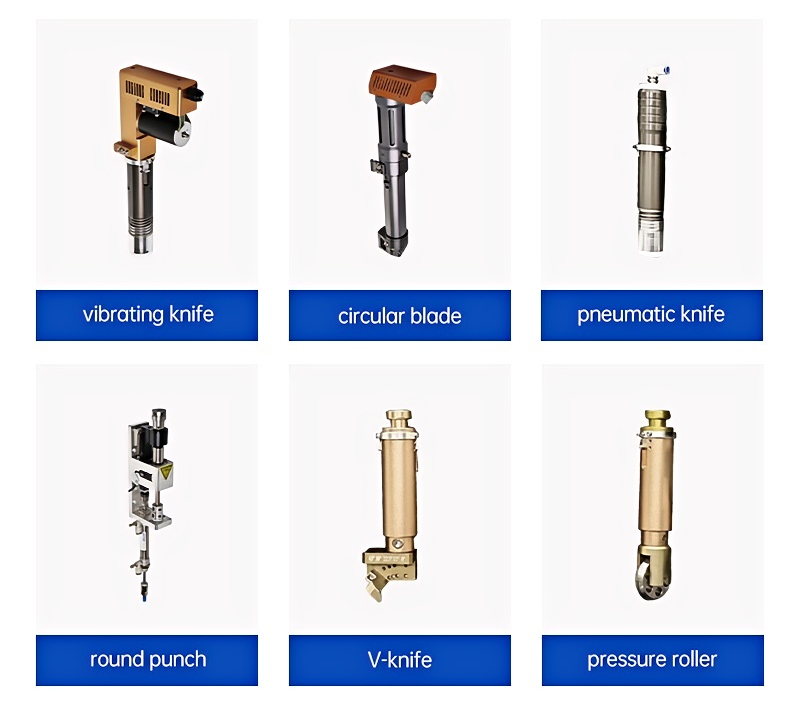

One machine handles multiple cutting tasks. Switch between tools in seconds:
· Vibrating knife — for fabric, leather, curtain cloth, non-woven fabric.
· Round blade — for soft textiles, knitted fabric and flexible foam.
· V-knife — for chamfering, grooving and bevel cuts on foam and sponge.
· Round punch — for hole punching, ventilation holes and decorative perforations.
The full-surface vacuum table holds the material flat and firmly during high-speed cutting. No shifting, no wrinkling, no misaligned edges — even on thin silk or thick carpet.
Built on a 600 kg welded steel frame, the machine stays stable at full speed. An imported servo motor and high-rigid linear guides ensure precise, silent and long-lasting operation. Cables pass 10 million bending tests for reliable daily use.
Import your designs directly from AI, PLT, DXF, CDR or CAD. Nesting software maximizes material utilization and reduces waste — typically saving 5–15% of fabric compared with manual layout.
· ISO9001 quality management system
· EU CE certification
· 5 years of global quality reputation
· Direct from the source factory, with fully customizable sizes and configurations
Contact KANGJIA CNC today for a free cutting test and a tailored quote. Tell us your material and working size — we will recommend the right configuration for your factory.
Call / WhatsApp: 17862902782
Email: 17862902782@163.com
Website: https://www.kjcncmachine.com/
Frequently Asked Questions
Q: How long does it take to deliver?
A: Standard models ship within 15 working days. Custom configurations take 20-25 days.
Q: Do you install and train?
A: Yes. We provide remote video installation guidance and on-site training is available on request.
Q: What file formats does the machine accept?
A: AI, PLT, DXF, CDR and CAD — most design files from your current workflow.
Q: Can I test my material before buying?
A: Absolutely. Send us your sample, and we will run a free cutting test with a video report.
Q: What is the price range?
A: Pricing depends on working area, tool configuration and voltage. Contact us for an exact quote — we will match your budget, not oversell.
